Model Number |

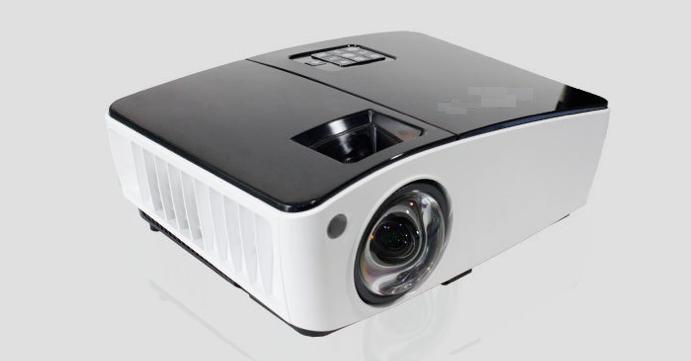

Model 280 Short Throw DLP Projector |
|
Lens Postion |
0.6ST NEW ST lens |
|
Native Resolution Chipset |
0.65" @XGA, 1024X768 DDP4421 |
|
Brightness(Marketing)) |
4000LM |
|
Contrast Ratio(Typical) |
13000:1 |
|
Throw Ratio (ANSI) |
0.6 |
|
lens offset |
1.3 |
|
Projection Lens |
F=2.6,f=6.9mm |
|
Uniformity (Marketing) |
0.85 |
|
Uniformity (Actual Min)-9Piont |
0.8 |
|
Throw Ratio |
0.62 82"@1m |
|
Throw Distance |
0.35~4m(30"~300") |
|
Aspect Ratio |
16:10/16:9/4:3 |
|
Keystone Adjustment |
+/- 40° (Vertical) |
|
Noise Level |
35dB (normal) / 32dB (eco) |
|
3D-function |
120Hz Standard Shutter 3D Funcion |
|

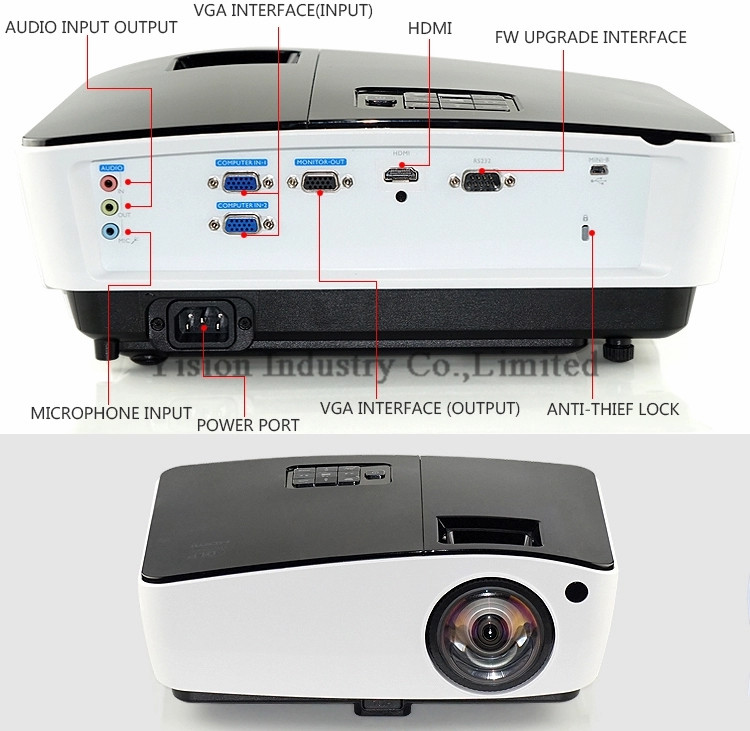

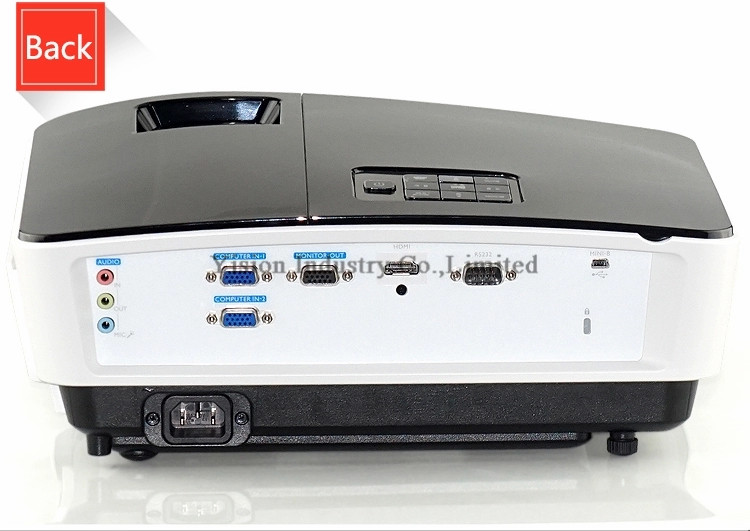

Input terminal |
D-Sub 15-pin x 2, S-Video x 1, Video x 1, Audio signal input (3.5mm stereo mini jack) x 1, HDMI x 1,MIC IN (OSD switch with Audio IN "2") |
|
Output terminal |
D-Sub 15 pin x 1, Audio signal output (3.5 mm stereo mini jack) x 1 |
|
Control terminal |
RS-232 x 1, Mini USB type x1 (supports firmware upgrade) |
|
PC Compatibility |
VGA SVGA XGA SXGA WXGA UXGA Mac |
|
Video Compatibility |
PAL,SECAM,NTSC 4.43,PAL-M, PAL-N, 480i,480p,576i,576p, 720p,1035i,and 1080i |
|
Remote Control |
Yes |
|
Lamp |
240W |
|
Lamp Life |
(Normal)6000H/(Eco)10000H |
|
H~Synch Range |
15~100 KHz |
|
V~Synch Range |
48~85Hz |
|
Standby Power |
<0.5W |
|
Power Consumption |
335(max),310(typ),min (270) |
|
Power Supply |
100V – 240V @ 50-60 HZ |
|
Operating Temp. |
5℃~35℃ |
|
Store Temp. |
-10℃~~60℃ |
|
OSD Languages |
English/ Traditional Chinese/ Simplified Chinese/ French/ German/ Spanish/ Italian/ Portuguese/ Russian/ Finland/ Sweden/ Turkish/ Polish/ Korea/ Thai/ 15 total |
|
Product Color |
Standard Black+white |
|

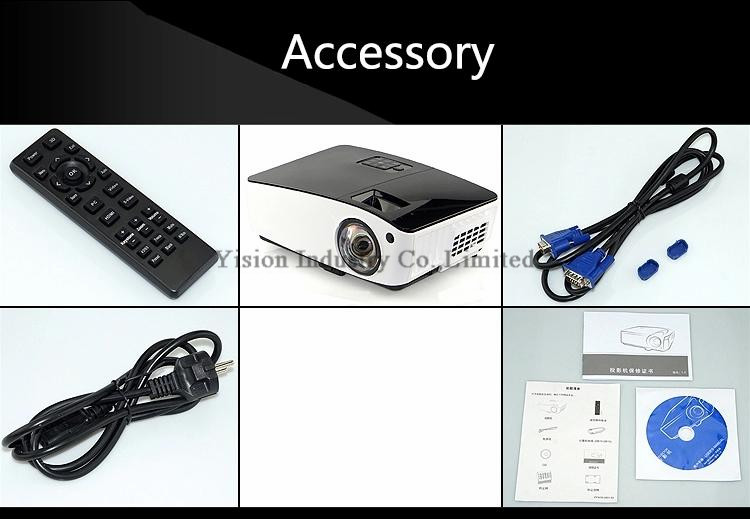

Standard Accessaries |
User Manual (CD), Power Cord, Remote Control & battery, VGA Cable, Warranty Card,Qualified card |
|

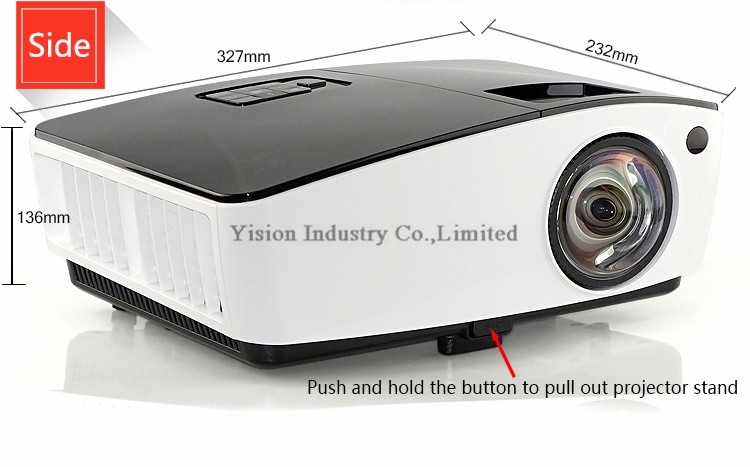

Machine Size |
327.4 x 136.7 x 248.8 mm |
|
Packing Detail |
N.W 2.5KG/G.W 4KG;1pc/inner box/outer box,390*182*340MM |

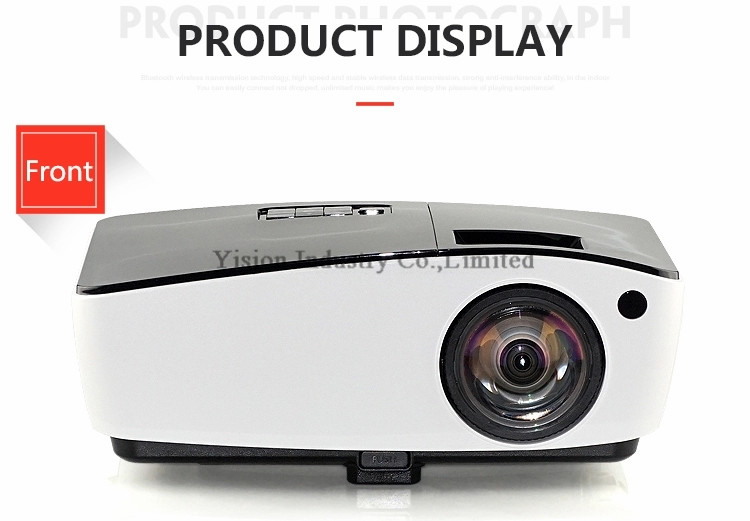

Product detail:

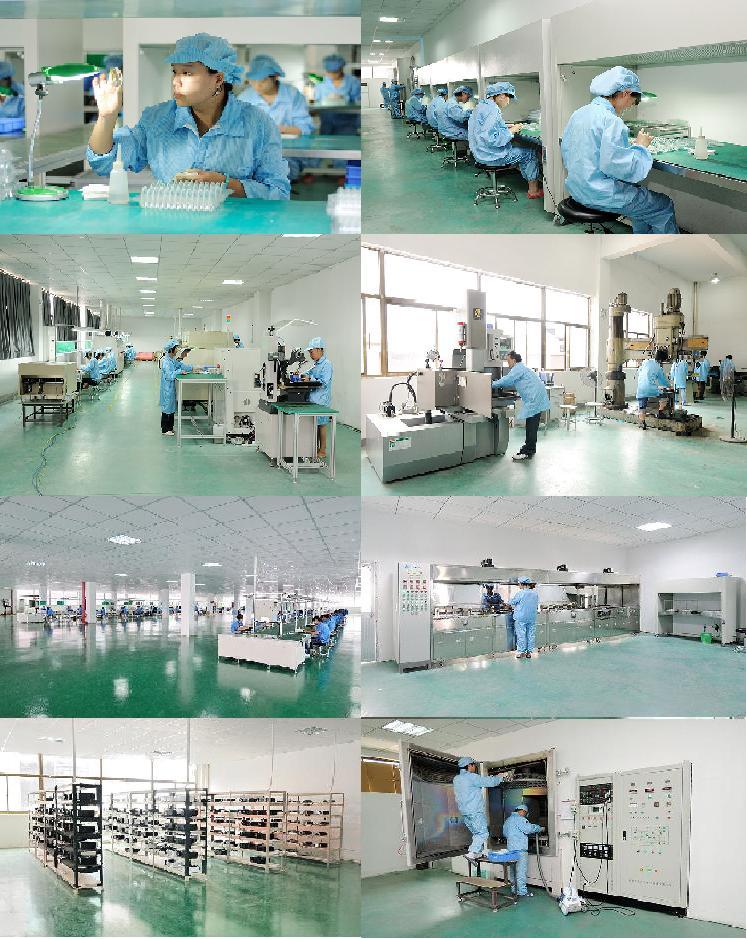

Factory facilities
1. Reliable quality:All our projectors are produced in line with the international standards and we are proud to have achieved the required standards of ISO9001:2000,CCC,FCC,RoHS, and CE,etc.
2. Portable style:combine advantages of freight cost-effective & easy operation.
3. Fast Delivery time: 7-25 days after order confirmed.
4. Complete Service: from Concept and Design, to Engineering, Pre-Production, Production, Packaging and Logistics/Shipping. We really do take care of all your needs.
5. Standard Color and customized color. Supply OEM Services according to the customers' designs and requirements.
6. Competitive Prices: you will see how much we can really save you and your customers before your competitors do.
Payment
We accept T/T bank transfer,paypal, west union, L/C
But except westunion, we take extra charge for paypal (4%commission) as for bank transfer we need to confirm with bank before transaction.
Terms & condition
We provide 1 year warranty of the projector, half year for bulb and accessory. If the item is defective, please notify us within 3 days of delivery.
All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
Items returned after 7 days of delivery are only eligible for repair.
The buyer is responsible for all shipping costs incurred.
