Item (DLP-V7 pro) |
Product Characteristic |
Product parameters |
|
OPTICS |
Display Type |
DLP |
|
|
Display Chip |
TI 0.45 inch WVGA DMD*RGB LED （With Off-axis Ray Machine）>100% |
|
|
Brightness |
500ANSI Lumens (8500LUX) |
|
|
Lamp |
OSRAM LED Lamps |
|
|
Uniformity |
>95% |
|
|
FOFO Contrast Ratio |
2000:1 |
|
|
Standard Resolution |
WVGA 1280*800 |
|
|
3D |
Support 3D function(DLP-LINK) |
|
PROJECTION |

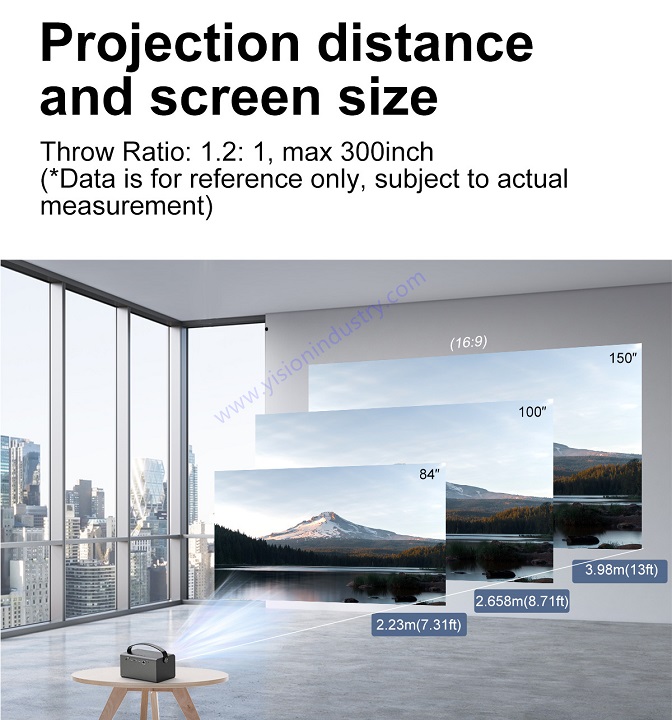

Throw Ratio |
1.2: 1 |
|
|
Throw Range |
30-200 inches |
|
|
Throw Distance |
1-6Meter(s) |
|
|
Aspect Ratio |
4：3/16：9/16：10 |
|
|
Keystone Correction |
Supports automatic and manual |
|
|
Projection Methods |
Front Projection, Rear Projection, Hanging cast |
|
|
Texture of material |
Plastic ABS+ electroplating + metal |
|
|
Focus mode |
Electric motor focusing |
|
|

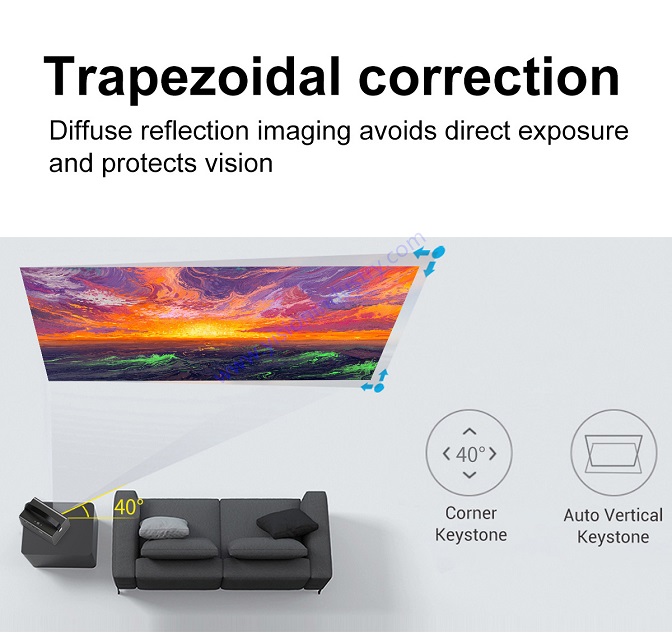

Keystone |
Corner keystone / Vertical keystone： ±40° |
|
|
Built-in loudspeaker |
8Ω 5w*2 |
|
|
Sound effects |
Support Dolby Sound |
|
SYSTEM PARAMETERS |
CPU |
MTK Decode 4K H.265/AVS2 4K*2K/30HZ |
|
|
Clock Speed |
64 bits CPU: Cortex A53 Two nuclei GPU: Mali-450mp4 |
|
|
RAM |
2G DDR3 |
|
|
ROM |
32GB eMMC |
|
|

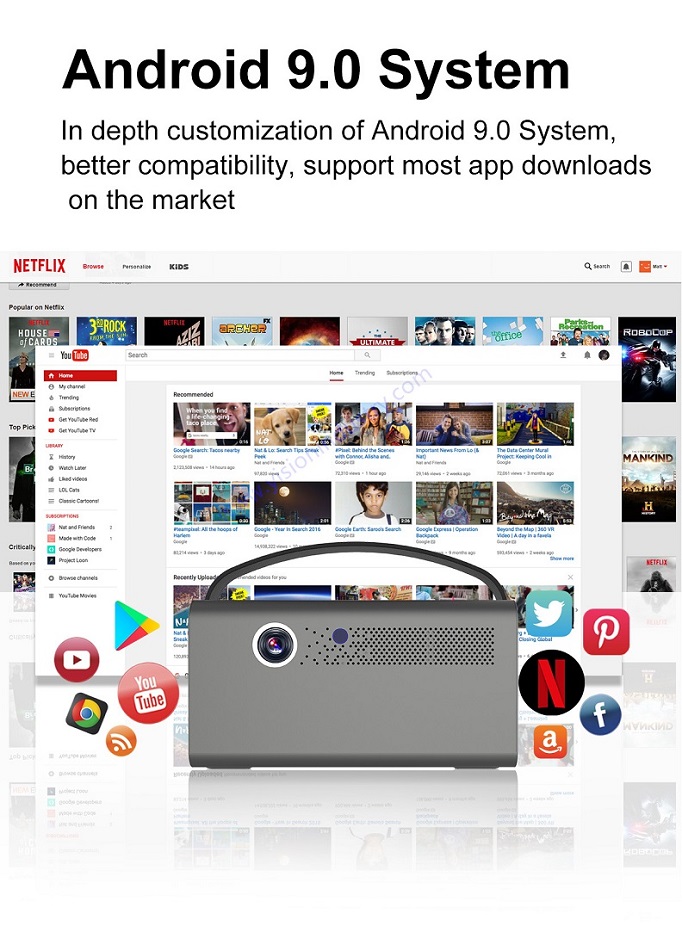

Operating System |
Android 9.0 |
|
|
Bluetooth |
Bluetooth 5.0 (support Bluetooth speaker, Bluetooth mouse, and Bluetooth GamePad ) |
|
|
WIFI |
2.4G / 5.0G dual-band WIFI |
|
|
Remote Control |
Infrared remote control and support 2.4g wireless remote control |
|
|
Power input parameters |
19V-3.42 DC |
|
|
Input support |
USB, IR |
|

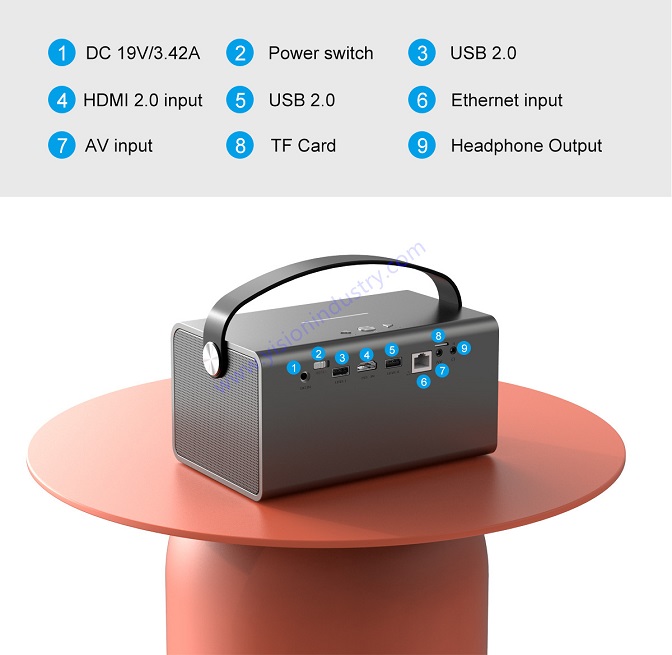

INTERFACE |
Extended Memory |
TF card and SSD Hard Dish |
|
|
USB |
USB HOST 2.0*1 USB HOST 3.0*1 |
|
|
TF Card |
Maximum supported 32G |
|
|
HDMI |
HDMI 2.0 |
|
|
USB |
Able to read data from USB hard drive support mouse and keyboard access |
|
|
Headphone Output |
Audio output, 3.5mm connectors (can connect headphones or speakers) |
|
|
AV input |
Supports AV signal input |
|
|
Ethernet input |
Supports Network interface |
|
|
DC Input |
Power adapter: DC 19V 3.42A |
|
ELECTRICAL SPECIFICATIONS |
Total Power Consumption |
35W |
|
|
Battery |
built-in 15600mAh lithium battery 57.72wh |
|
|
Power Performance |
AC100-240V,50/60Hz |
|
OTHER PARAMETERS |
Product Size |
193*123*100mm |
|
|
Package Size |
290*163*118mm |
|
|
Net Weight |
1.05kg |
|
|
Package Weight(1set) |
1.86Kg |
|
|
Package Weight(8sets/box) |
16KG |
|
|
Carton Size(8sets/box) |
550*380*350mm |
More product information can be got from the following link,

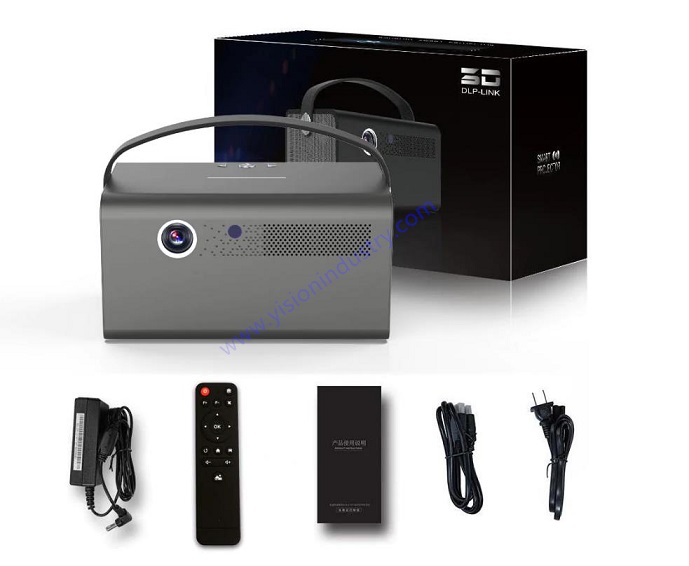

Product Details
Factory facilities
Why choose us
1. Reliable quality:All our projectors are produced in line with the international standards and we are proud to have achieved the required standards of ISO9001:2000,CCC,FCC,RoHS, and CE,etc.
2. Portable style:combine advantages of freight cost-effective & easy operation.
3. Fast Delivery time: 7-25 days after order confirmed.
4. Complete Service: from Concept and Design, to Engineering, Pre-Production, Production, Packaging and Logistics/Shipping. We really do take care of all your needs.
5. Standard Color and customized color. Supply OEM Services according to the customers' designs and requirements.
6. Competitive Prices: you will see how much we can really save you and your customers before your competitors do.
Payment
We accept T/T bank transfer,paypal, west union, L/C
But except westunion, we take extra charge for paypal (4%commission) as for bank transfer we need to confirm with bank before transaction.
Terms & condition
We provide 1 year warranty of the projector, half year for bulb and accessory. If the item is defective, please notify us within 3 days of delivery.
All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
Items returned after 7 days of delivery are only eligible for repair.
The buyer is responsible for all shipping costs incurred.
