Item（DLP-K2） |
Product Characteristic |
Product parameters |
|
OPTICS |
Display Type |
DLP |
|
|
Display Chip |
TI 0.23 inch WVGA DMD*RGB LED （With Off-axis Ray Machine）>100% |
|
|
Projector Feature |
Interactive |
|
|
Brightness |
400 ANSI Lumens / 5500 Lumens |
|
|
Lamp |
OSRAM LED Lamps |
|
|
Uniformity |
>90% |
|
|
FOFO Contrast Ratio |
1000:1 |
|
|
Standard Resolution |
WVGA 960*540 |
|
|
3D |
Support 3D function(DLP-LINK) |
|
PROJECTION |
Throw Ratio |
1.2:1 |
|
|
Throw Range |
30-120 inches |
|
|
Throw Distance |
1-6 Meter(s) |
|
|
Aspect Ratio |
4：3 / 16：9 |
|
|
Keystone Correction |
Supports automatic and manual |
|
|
Projection Methods |
Front Projection back-projection hang projection |
|
SYSTEM PARAMETERS |
CPU |
MTK Decode 4K H.265/AVS2 4K*2K/30HZ |
|
|
RAM |
2G DDR3 |
|
|
ROM |
32GB Emmc |
|
|
Operating System |
Android 9.0 |
|
|
Video Support |
Real-Time Video Decoder for MPEG-1 MPEG-2 MPEG-4, H263,H264,H265,VC-1,RV |
|
|
Audio Support |
MP3, WMA, MP2, 0GG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV |
|
|
Photo Support |
Supports a variety of image formats browsing jpg png BMP etc |
|
|
Bluetooth |
BT 5.0 (Support external Bluetooth Speaker, mouse, and gamepad） |
|
|
WIFI |
2.4G/5G Dual-band WIFI |
|
|
Remote Control |
Infrared remote control and support connect the 2.4g wireless remote control and the mouse |
|
|
Power Input Parameters |
12V-3A DC |
|
|
Input Support |
USB, IR |
|

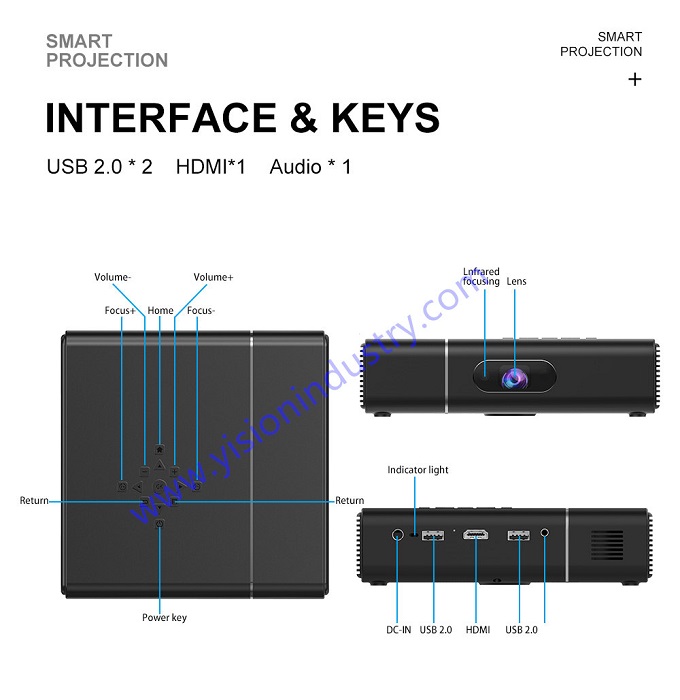

INTERFACE |
Extended Memory |
TF card and SSD Hard Dish |
|
|
USB |
USB HOST 2.0*2 ，Able to read data from USB hard drive support mouse and keyboard access |
|
|
HDMI |
Supports HDMI 2.0input |
|
|
Headphone Output |
Audio output, 3.5mm connectors (can connect headphones or speakers) |
|
|
DC Input |
Power adapter: DC 12V 3A |
|
ELECTRICAL SPECIFICATIONS |
Total Power Consumption |
36W |
|
|
Power Performance |
AC110-240V,50/60Hz No built-in battery |
|
OTHER PARAMETERS |
Product Size |
173*173*40mm |
|
|
Package Size |
360*250*56mm |
|
|
Net Weight |
675g |
|
|
Package Weight(1set) |
1.73Kg |
|
|
Package Weight (10set/box) |
18.6KG |
|
|
Carton Size(10set/box) |
550*380*350mm |

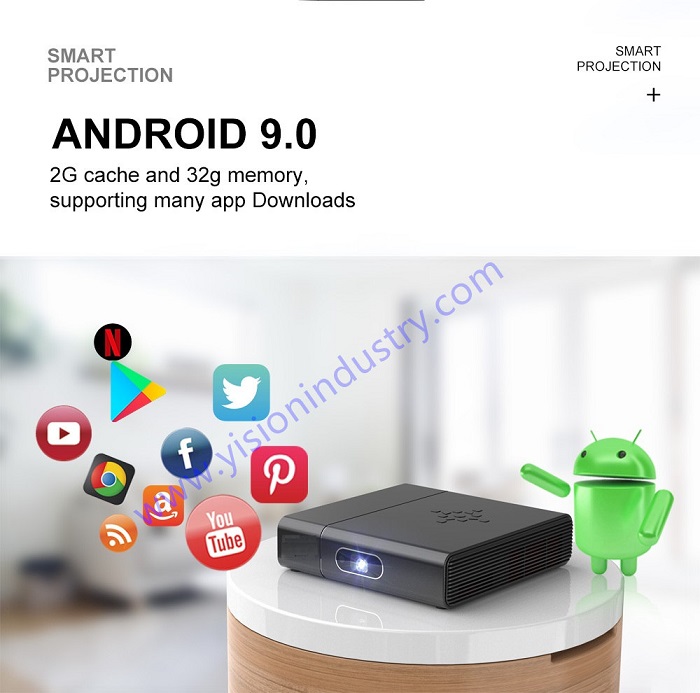

Product Details

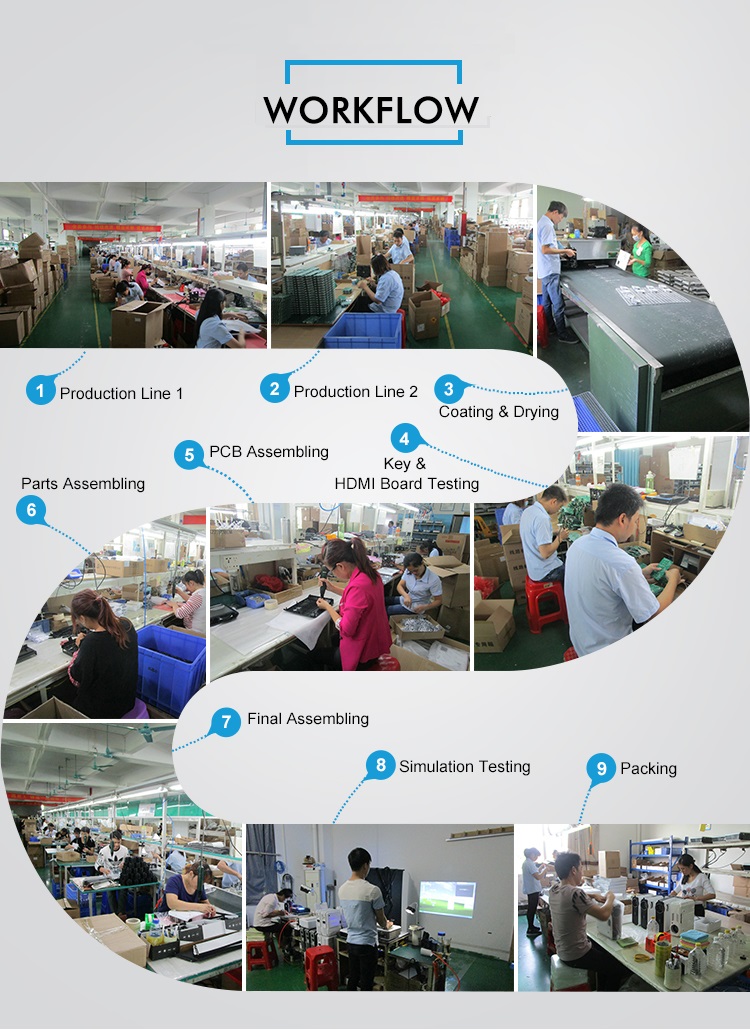

Factory facilities
Why choose us
1. Reliable quality:All our projectors are produced in line with the international standards and we are proud to have achieved the required standards of ISO9001:2000,CCC,FCC,RoHS, and CE,etc.
2. Portable style:combine advantages of freight cost-effective & easy operation.
3. Fast Delivery time: 7-25 days after order confirmed.
4. Complete Service: from Concept and Design, to Engineering, Pre-Production, Production, Packaging and Logistics/Shipping. We really do take care of all your needs.
5. Standard Color and customized color. Supply OEM Services according to the customers' designs and requirements.
6. Competitive Prices: you will see how much we can really save you and your customers before your competitors do.
Payment
We accept T/T bank transfer,paypal, west union, L/C
But except westunion, we take extra charge for paypal (4%commission) as for bank transfer we need to confirm with bank before transaction.
Terms & condition
We provide 1 year warranty of the projector, half year for bulb and accessory. If the item is defective, please notify us within 3 days of delivery.
All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
Items returned after 7 days of delivery are only eligible for repair.
The buyer is responsible for all shipping costs incurred.
